lumis.content.control.autolayout
Class AutoLayoutContentPropertyPageControl

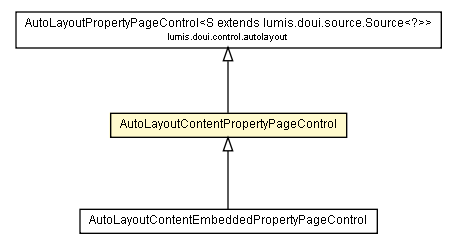

java.lang.Object
  lumis.doui.control.Control
      lumis.doui.control.DataControl
          lumis.doui.control.DataBoundControl<S>
              lumis.doui.control.autolayout.AutoLayoutPropertyPageControl
                  lumis.content.control.autolayout.AutoLayoutContentPropertyPageControl

All Implemented Interfaces:

java.util.Observer, javax.servlet.jsp.el.VariableResolver, IControl, IDataBoundControl, IDataControl, IRenderer

Direct Known Subclasses:

AutoLayoutContentEmbeddedPropertyPageControl

public class AutoLayoutContentPropertyPageControl
extends AutoLayoutPropertyPageControl

Renders a property page control with the visible source fields as label: input control pairs. In addition the metadata information is rendered below the source fields.

This control generates sub-controls in the following layout

 <control type="lum_form">
        <control type="lum_propertyPage">
                <control type="lum_filters" id="" + getId() + ".lumFilters" />
                <control type="lum_controlGroup" title="" + localize("STR_BASIC_INFORMATION") + "">
                        <control type="lum_autoLayoutFields" id="" + getId() + "_Fields" />
                </control>
                <control type="lum_autoLayoutMetaDataInformation" />
        </control>
 </control>


Example use: <control:lum_autoLayoutContentPropertyPage /> xml data available for xsl rendering: <control id="autoLayout" type="lum_autoLayoutContentPropertyPage"> <control type="lum_form" ...> <control type="lum_propertyPage" .../> </control> </control>

Since:

4.0.2

See Also:

PropertyPageControl, AutoLayoutPropertyPageControl

Field Summary

Fields inherited from class lumis.doui.control.DataControl

FORCE_CASE_LOWER, FORCE_CASE_NONE, FORCE_CASE_UPPER, forceCase, requestParameterName, UNKNOWN_DATA_TYPE, value, valuePreviouslySet

Fields inherited from class lumis.doui.control.Control

childControls, controlContainer, controlDefinitionNode, controlResource, douiContext, hasValidatorSubControls, isValid, locale, ON_EVENT_CLOSE_WINDOW, ON_EVENT_LINK, ON_EVENT_POPUP_LINK_OR_RUNTIME_INTERFACE, ON_EVENT_POPUP_RUNTIME_INTERFACE, ON_EVENT_PROCESS_ACTION, ON_EVENT_RENDER_ACTION, ON_EVENT_SCRIPT, onEventScripts, PARAMETER_TYPE_FIRST_SELECTED, PARAMETER_TYPE_GET_VALUE, parentControl, resources, type, VALIDATION_SELECTED_MANY, VALIDATION_SELECTED_ONE

Constructor Summary

AutoLayoutContentPropertyPageControl()

Method Summary

protected void	addAutoLayoutFields(java.lang.StringBuilder subControls)
protected void	addPropertyPageSubControls(java.lang.StringBuilder subControls)

Methods inherited from class lumis.doui.control.autolayout.AutoLayoutPropertyPageControl

addPropertyPageControl, buildSubControls, generateControlId

Methods inherited from class lumis.doui.control.DataBoundControl

autoAddDateTimeValueValidator, autoAddDoubleValueValidator, autoAddFileSizeValidator, autoAddIntegerValueValidator, autoAddLengthValidator, autoAddLongValueValidator, autoAddRequiredValueValidator, autoAddValidators, createConverter, createDataType, getDataId, getFieldName, getProcessActionHandlerParameterName, getReload, getRuntimeDefaultSource, getSource, getSourceById, getUnboundedConverter, init, loadFromRequest, setDefaultValue, setRawValue, setReload, setRenderData, setSourceParameter, setSourceParameters, setsSourceParameters, setValid, setValueFromSource, setValueFromSource, update

Methods inherited from class lumis.doui.control.DataControl

convertValueToControlValue, getConverter, getDataType, getDefaultValue, getParameterValue, getProcessActionIds, getRequestParameterName, getValue, getValue, getValueClass, initProcessActionIds, isTrim, loadSubControlFromRequest, loadSubControlsFromRequest, setProcessActionHandlerParameter, setProcessActionHandlerParameter, setProcessActionHandlerParameters, setTrim, setValue, valueIsArray

Methods inherited from class lumis.doui.control.Control

appendSubControl, appendSubControls, applyOnEventScripts, convertToStandardValue, createContainer, disconnect, fixedIdentifierRequired, getAdditionalParameters, getAdditionalParameters, getAncestor, getChildControls, getClientEventHandlerScript, getControlResource, getId, getLocale, getNamespace, getParentControl, getPrepareForReadScript, getRenderData, getResources, getScriptActionValidation, getScriptGetValues, getScriptGetValuesFunctionImplementation, getScriptGetValuesFunctionName, getScriptGetValuesRegistration, getSourceContext, getStringsToLocalize, getType, getValidationScript, isValid, localize, localizeStrings, processCustomTags, registerOnEventScript, removeChild, removeChildren, resolveVariable, setRuntimeAttributes

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Methods inherited from interface lumis.doui.control.IDataControl

getConverter, getProcessActionIds, getValue, getValue, setProcessActionHandlerParameters, setValue

Methods inherited from interface lumis.doui.control.IControl

createContainer, disconnect, getChildControls, getControlResource, getId, getParentControl, getPrepareForReadScript, getRenderData, getResources, getType, isValid, registerOnEventScript, removeChild, removeChildren, setRuntimeAttributes

Methods inherited from interface lumis.doui.render.IRenderer

getResources, getSourceContext

Constructor Detail

AutoLayoutContentPropertyPageControl

public AutoLayoutContentPropertyPageControl()

Method Detail

addPropertyPageSubControls

protected void addPropertyPageSubControls(java.lang.StringBuilder subControls)
                                   throws PortalException

Overrides:

addPropertyPageSubControls in class AutoLayoutPropertyPageControl

Throws:

PortalException

addAutoLayoutFields

protected void addAutoLayoutFields(java.lang.StringBuilder subControls)
                            throws PortalException

Overrides:

addAutoLayoutFields in class AutoLayoutPropertyPageControl

Throws:

PortalException
